Macro Explorer



By default Macro Express opens to the Macro Express Pro - Explorer window. This window displays a list of macros contained in the file currently open. The Macro Explorer is the starting point for creating new macros or editing existing ones.





Left click on the Macro Express icon in the notification area or press the system macro Ctrl + Alt + Shift + W



Actions

The icons at the top of the Macro Explorer window are the primary methods for navigating through the program. Clicking on any of these icons will load a different program function.







New File

Create a new macro (.mex) file.

Open File

Open an existing macro (.mex) file. Or click on the triangle button to view a list of recently used macro files and select one to open.



New Macro

Click on the New Macro button to start the process of building a macro in the Script Editor or Direct Editor. The first step prompts to select an activation method and assign a name to the macro. The next step opens the Script Editor to begin creating the macro. The Script Editor is the default editor. If desired, click on the Direct Editor icon  while in the Script Editor to switch to the Direct Editor.

Run Now

Click this button to run the macro that is highlighted in the Macro Express Pro - Explorer window.



Edit Macro

Highlight a macro from the list of already created macros. Click on the Edit Macro button to open the Script Editor and display the macro. Or double click on the macro in the list to open it in the Script Editor.



Capture

Starts the process for recording or capturing a macro. Keystrokes and mouse clicks/movements are recorded and saved.



Quick Wizards

Opens the Quick Wizards dialog. There are 25+ different wizards to provide step by step instructions for creating various macro types.



Recycle Bin

Macro Express has its own recycle bin. Any macros deleted from the Macro Explorer are sent to the Recycle Bin. If a macro is deleted by mistake it can be restored to its original file. Or the macros in the recycle bin may be removed permanently.

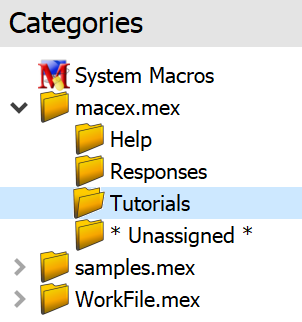

Categories

Use the Categories option to assign macros to user defined categories. With large numbers of macros created, the categories provide an easy way to locate macros for further editing, refinement, exporting, etc.



For example create a Password category to hold any macros containing important passwords or assign any MS Word specific macros to a MS Word category. This makes it easy to quickly find the macro needed.









Upon installation there are three default categories - System Macros, All Categories and Unassigned. These categories may not be renamed or deleted. Additional categories may be created as shown in this example. Since Macro Express allows more than one macro file to be open at a time, multiple sets of categories may be displayed - a set for each open file.



Note: A macro may only be assigned to one category.





Macros

The Macros section displays the list of macros in the file or category that is currently open. When saving macros in the editors, quick wizards or with a macro capture, the program will return to the Macro Explorer. The list of macro information is displayed in six columns.



Index

The index column lists the macros in the order that they were created. The first macro created in the file displays as number 1, the second macro as number 2, etc.



Nickname

Optionally assign a nickname to any macro to help more readily identify the purpose of the macro. Any not assigned a nickname display with a blank field.



Activation

The Activation column displays the method selected to execute the macro. This column displays the hot key combinations, any timed macros, the letter combinations used for any shortkeys or any other type of activation method chosen. If more than one activation is assigned to the macro, this column displays Multiple for that macro. If the Show Preview Pane option is selected highlight the macro to view all of the activations in this pane.



Scope

This column lists the macro scope, whether it is global, global except, window specific, program specific, a system macro, a popup menu or a floating menu.



Category

This column lists the category to which the macro was assigned.



Modified

The Modified column displays the date and time that the macro was last modified.



Last Run

The Last Run column displays the date and time that the macro was last run.





Sorting Macros

To quickly sort the list of macros displayed, click on one of the column headers, Nickname, Activation, Scope, Category, Modified or Last Run. The macros will be sorted based on the column header selected. Click on the header a second time to reverse the sort order.





Right Click Context Menu

Right mouse click on a macro in the macro list to open the context menu. The menu options include Run Macro Now, Copy Macro, Edit Macro, Enable/Disable Macro, Recapture Macro, Delete Macro and Macro Properties.










Keyboard Shortcuts

Below is a listing of the Keyboard Shortcuts available in the Macro Explorer.



Keystroke

Action

Ctrl+F

Find

F3

Find Again

Delete

Delete highlighted macro

Ctrl+P

Print macro list





These keyboard shortcuts are used to navigate through the program. These keystrokes perform the same function as clicking on the Actions Icons in the left hand column of the program.



Keystroke

Action

Alt+E

Edit highlighted macro, when not in the Macro Recycle bin.

Alt+E

Return to Macro Explorer from Recycle Bin

Alt+N

New Macro

Alt+P

Capture

Alt+Q

Quick Wizards

Alt+B

Recycle Bin
